SALIENT FEATURES:
- Designed for uniform circulation of hot air in the drying Chamber.
- Available in wide ranging models from 24 to 96 Tray capacity.
- Electrical heating system.
- Fresh air inlet in fan motor having electrical interlocking for safety of heating elements.
- Heating Coils and fan motor having electrical interlocking for safety of heating elements.
- Both Inside & outside Surfaces are made from S.S. 304.
- Timer provided to set cyclic period which can operate automatically in absence of Operator.
TECHNICAL SPECIFICATION:
| Model | 48 Tray |
| Temperature range | 30۫ C to 100۫ C |
| Electrical Heater | 6 heaters / each of 1.5 kw. |
| Electrical Motor | 0.75kw / 1 H.P./1440 R.P.M. 440 v, 50 Hz, 3 Phase |
| Power (Total) | 12.75 Kw. |
| S.S. Trays | 48 Tray of 810 X 405 X 35 mm |
| Over All Dimensions | 68” (L) X 78” (H) X 42” (W) |
TECHNICAL SPECIFICATION:
| Model | 96 Tray |
| Temperature range | 30۫ C to 100۫ C |
| Electrical Heater | 15 heaters / each of 1 kw. |
| Electrical Motor (2 Nos.) | 0.75kw / 1 H.P./1440 R.P.M. 440 v, 50 Hz, 3 Phase |
| Power (Total) | 16.5 Kw. |
| S.S. Trays | 96 Tray of 810 X 405 X 35 mm |
| Over All Dimensions | 136” (L) X 78” (H) X 42” (W) |
SUNTD TRAY DRYER MACHINE:
SALIENT FEATURES:
- Designed for uniform circulation of hot air in the drying Chamber.
- Available in wide ranging models from 24 to 96 Tray capacity.
- Electrical heating system.
- Fresh air inlet in fan motor having electrical interlocking for safety of heating elements.
- Heating Coils and fan motor having electrical interlocking for safety of heating elements.
- Both Inside & outside Surfaces are made from S.S. 304.
- Timer provided to set cyclic period which can operate automatically in absence of Operator.
TECHNICAL SPECIFICATION:
| Model | 24 Tray | 48 Tray |
| Temperature range | 30۫ C to 100۫ C | 30۫ C to 100۫ C |
| Electrical Heater | 4 heaters / each of 1.5 kw. | 8 heaters / each of 1.5 kw. |
| Electrical Motor | 0.37kw / 0.5 H.P./1440 R.P.M. 440 v, 50 Hz, 3 Phase | 0.75kw / 1 H.P./1440 R.P.M. 440 v, 50 Hz, 3 Phase |
| Power (Total) | 6.37 Kw. | 12.75 Kw. |
| S.S. Trays | 24 Tray of 80 X 40 X 3.5 | 48 Tray of 80 X 40 X 3.5 |
| Over All Dimensions | 64” (L) X 48” (H) X 40” (W) | 68” (L) X 78” (H) X 42” (W) |
TECHNICAL SPECIFICATION:
| Model | 12 Tray |
| Temperature range | 30۫ C to 100۫ C |
| Electrical Heater | 3 heaters / each of 1.5 kw. |
| Electrical Motor | 0.37kw / 0.5 H.P./1440 R.P.M. 440 v, 50 Hz, 3 Phase |
| Power (Total) | 4.87 Kw |
| S.S. Trays | 12 Tray of 80 X 40 X 3.5 |
| Over All Dimensions | 64” (L) X 48” (H) X 21” (W) |

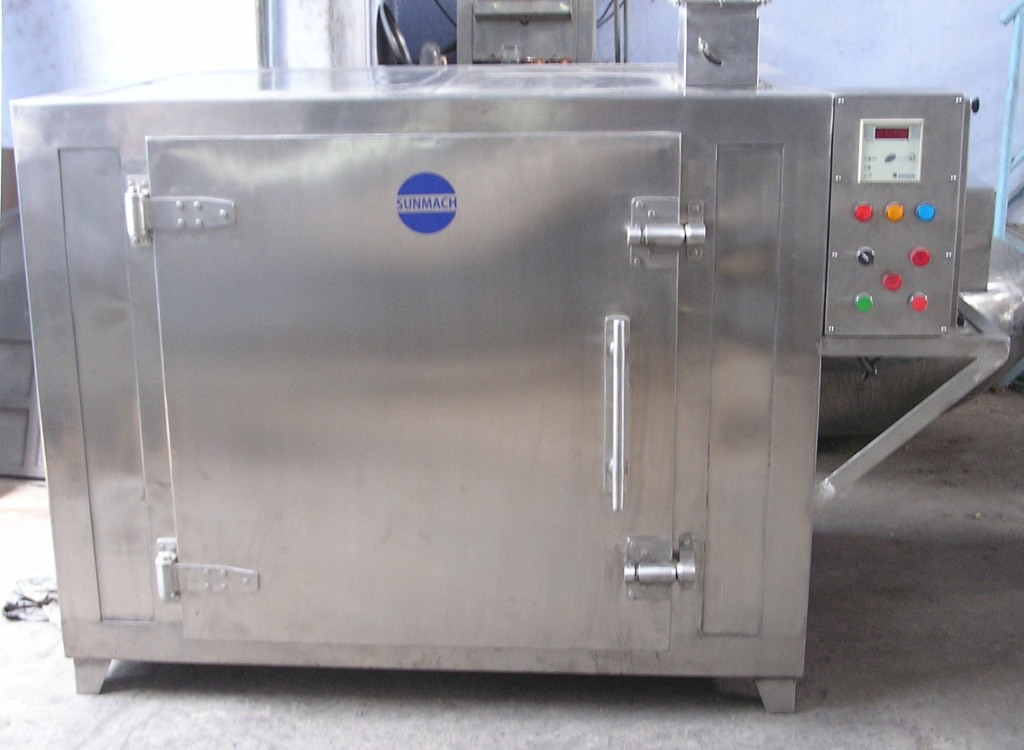

"SUNTD” 24 TRAY DRYER MACHINE:
SALIENT FEATURES:
- Designed for uniform circulation of hot air in the drying Chamber.
- Available in wide ranging models from 24 to 96 Tray capacity.
- Electrical heating system.
- Fresh air inlet in fan motor having electrical interlocking for safety of heating elements.
- Heating Coils and fan motor having electrical interlocking for safety of heating elements.
- Both Inside & outside Surfaces are made from S.S. 304.
- Timer provided to set cyclic period which can operate automatically in absence of Operator.
TECHNICAL SPECIFICATION:
| Model | 24 Tray |
| Temperature range | 30۫ C to 100۫ C |
| Electrical Heater | 4 heaters / each of 1.5 kw. |
| Electrical Motor | 0.37kw / 0.5 H.P./1440 R.P.M. 440 v, 50 Hz, 3 Phase |
| Power (Total) | 6.37 Kw. |
| S.S. Trays | 24 Tray of 80 X 40 X 3.5 |
| Over All Dimensions | 64” (L) X 48” (H) X 40” (W) |
