TABLET HARNESS TESTER

  1. Home
  2. Products
  3. TABLET HARNESS TESTER
...

STANDARD FEATURES:

  • Hardness Measurement By Load Cell Up To 500 Newtons
  • Units Of Measurement In N, Kgf And Lbf
  • PC Connectivity / Printer Connectivity Through RS232 Port
  • Programmable Upper (T1) And Lower (T2) Tolerance Limits
  • Peak Hold And Auto Release Function
  • Green And Red Light Indication For Better Understanding
  • Memory Of Upto 10 Testing Data
  • Automated Semi-Calibration (Zero-Point Adjustment)
  • Display Of 10 Test Value And Calculate The Average Of The Memorized Value.
  • LCD Display With Back Light
  • Interchangeable Display Direction For Better View
  • Automatic Power Off Function
  • Acrylic Glass Safety Cover With Disposal Container
  • Tester Operates On Rechargeable Battery

Optional

  • 1 Kg Calibration Ring Weight
  • Hook for Weight
  • Calibration Certificate
  • IQ / OQ / PQ Documents
  • 2” Thermal Printer

    TECHNICAL SPECIFICATIONS

    Capacity500N / 50kgf
    Resolution0.1N
    Accuracy± 0.5%
    Tablet Range2 ~ 28 mm
    DisplayLCD with Backlight
    InterfaceRS-232
    Standard AccessoriesDC Power Adaptor,Cleaning Brush, User Manual, Storage & Carry Case
    Gross Weight5 kg

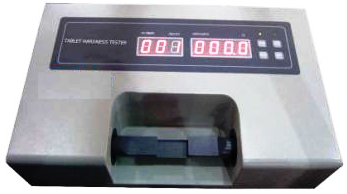

    M Digital Automatic Tablet Hardness Tester (Model: SMA-THT)

    Specification

    • Range of test Diameter - 3~40 mm
    • Power - 110V/60Hz/60W
    • Test time per tablet - First Tablet 25 Sec
    • next 10 s/p
    • Max number in each group - 100 pcs

    Salient Features

    • Selectable Units: N, kgf, lbf
    • Inbuilt auto-test, auto-diagnose, auto-alarm
    • It can process and print hardness of each tablet, the maximum value, the minimal value, the average value and the number of tablets
    • Easy Calibration Procedures
    • Convenient use with Feather touché keys
    • Digital Bright LED Display

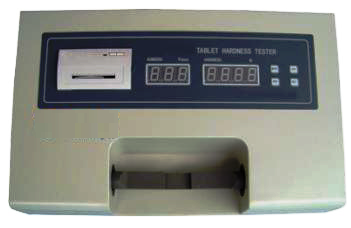

    SM Digital Automatic Tablet Hardness Tester with Inbuilt Printer (Model: SMA-THTP)

    Specification

    • Range of test Diameter - 3~40 mm
    • Power - 110V/60Hz/60W
    • Test time per tablet - First Tablet 25 Sec
    • next 10 s/p
    • Max number in each group - 100 pcs

    Salient Features

    • Selectable Units: N, kgf, lbf
    • Inbuilt auto-test, auto-diagnose, auto-alarm
    • It can process and print hardness of each tablet, the maximum value, the minimal value, the average value and the number of tablets
    • Easy Calibration Procedures
    • Convenient use with Feather touché keys
    • Digital Bright LED Display
